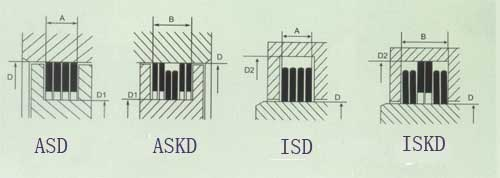

密封叠环的规格型号
ZHASD=外径加紧双密封圈（１组＝２个圈）对沟槽支撑圈不能超出极限速度。
最大速度10米/秒
ZHISD＝内径加紧双密封圈（１组＝２个圈）对沟槽支撑圈不能超出极限速度。
最大速度10米/秒
ZHASKD＝外径加紧双密封环组（１组＝３个圈）对沟槽支撑圈不能超出极限速度。
最大线速度：10米/秒
ZKISKD＝内径加紧双密封圈集组（１组＝３个圈）对沟槽支撑圈不能超出极限速度。
最大线速度：10米/秒
|
孔径Ｄ |
密封圈尺寸 |
槽 宽 |
槽 径 |
|
ＲＢ |
ＲＤ |
A |
B |
Ｄ１ |
Ｄ２ |
|
15- 24.5 |
1.0 |
1.3 |
2.96 |
4.3 |
D- 2.6 |
D+ 2.6 |
|
25- 29.5 |
1.2 |
1.3 |
2.9 |
4.3 |
D- 3.0 |
D+ 3.0 |
|
30- 35.5 |
1.5 |
1.3 |
2.9 |
4.3 |
D- 3.6 |
D+ 3.6 |
|
36- 42.5 |
1.8 |
1.3 |
2.9 |
4.3 |
D- 4.2 |
D+ 4.2 |
|
43- 48.5 |
2.2 |
1.45 |
3.2 |
4.8 |
D- 5.0 |
D+ 5.0 |
|
49- 51.5 |
2.4 |
1.45 |
3.2 |
4.8 |
D- 5.4 |
D+ 5.4 |
|
52- 59.5 |
2.6 |
1.45 |
3.2 |
4.8 |
D- 5.8 |
D+ 5.8 |
|
60- 69.5 |
2.8 |
1.65 |
3.6 |
5.4 |
D- 6.2 |
D+ 6.2 |
|
70- 74.5 |
3.1 |
1.65 |
3.6 |
5.4 |
D- 6.8 |
D+ 6.8 |
|
75- 79.5 |
3.3 |
1.65 |
3.6 |
5.4 |
D- 7.2 |
D+ 7.2 |
|
80- 89.5 |
3.5 |
1.65 |
3.6 |
5.4 |
D- 7.6 |
D+ 7.6 |
|
90- 99.5 |
3.5 |
1.65 |
3.6 |
5.4 |
D- 8.2 |
D+ 8.2 |
|
100- 104.5 |
4.1 |
1.65 |
3.6 |
5.4 |
D- 8.8 |
D+ 8.8 |
|
105- 109.5 |
4.3 |
1.96 |
4.3 |
6.4 |
D- 9.2 |
D+ 9.2 |
|
110- 119.5 |
4.6 |
1.96 |
4.3 |
6.4 |
D- 9.8 |
D+ 9.8 |
|
120- 129.5 |
5.0 |
1.96 |
4.3 |
6.4 |
D- 10.8 |
D+ 10.8 |
|
130- 149.5 |
5.5 |
1.96 |
4.3 |
6.4 |
D- 11.8 |
D+ 11.8 |
|
150- 170.0 |
6.0 |
2.0 |
4.4 |
6.5 |
D- 13.0 |
D+ 13.0 |
|
150- 170.0 |
6.0 |
3.0 |
6.5 |
9.6 |
D- 13.0 |
D+ 13.0 |
|
171- 199.0 |
7.0 |
2.0 |
4.4 |
6.5 |
D- 15.0 |
D+ 15.0 |
|
171- 199.0 |
7.0 |
3.0 |
6.5 |
9.6 |
D- 15.0 |
D+ 15.0 |
|
200- 259.0 |
8.0 |
2.4 |
5.3 |
7.8 |
D- 18.0 |
D+ 18.0 |
|
200- 259.0 |
8.0 |
3.0 |
6.5 |
9.6 |
D- 18.0 |
D+ 18.0 |
|
260- 319.0 |
9.0 |
3.0 |
6.5 |
9.6 |
D- 20.0 |
D+ 20.0 |
|
320- 399.0 |
10.0 |
3.0 |
6.6 |
9.8 |
D- 22.0 |
D+ 22.0 |
|
400- 439.0 |
11.0 |
3.0 |
6.6 |
9.8 |
D- 24.0 |
D+ 24.0 |
|
440- 600.0 |
12.0 |
3.0 |
6.6 |
9.8 |
D- 26.0 |
D+ 26.0 |
|
440- 600.0 |
12.0 |
5.0 |
10.6 |
15.9 |
D- 26.0 |
D+ 26.0 |
|
601- 699.0 |
14.0 |
5.0 |
10.8 |
16.2 |
D- 32.0 |
D+ 32.0 |
|
700- 799.0 |
16.0 |
5.0 |
10.8 |
16.2 |
D- 36.0 |
D+ 36.0 |
|
800- 899.0 |
18.0 |
5.0 |
11.0 |
16.5 |
D- 40.0 |
D+ 40.0 |
|
900- 999.0 |
20.0 |
5.0 |
11.0 |
16.5 |
D- 44.0 |
D+ 44.0 |
|
1000- 1300.0 |
22.0 |
5.0 |
11.0 |
16.5 |
D- 48.0 |
D+ 48.0 |
|
|
配合公差：mm |
|
尺寸分段 |
15- |
105- |
150 |
400- |
|
104.5 |
149.5 |
439.0 |
1300.0 |
|
RB |
+0.10 |
+0.10 |
0.12 |
+0.20 |
|
+0.10 |
-0.20 |
-0.30 |
-0.40 |
|
RD |
+0.08 |
+0.10 |
+0.12 |
+0.14 |
|
-0.04 |
-0.06 |
-0.08 |
-0.10 |
|
A-B |
+0.10 |
+0.15 |
+0.20 |
+0.25 |
|
-0 |
-0 |
-0 |
-0 |
|
D1 |
+0 |
+0 |
+0 |
+0 |
|
-0.25 |
-0.25 |
-0.30 |
-0.40 |
|
D2 |
-0.25 |
-0.25 |
-0.30 |
-0.400 |
|
-0 |
-0 |
-0 |
-0 |
|
